Products
plus
-
Choose 2 or 4 mic channels
-
Integrated DSP and mixer Built-in DSP and mixer
The Plus system's Hub packs three devices in one:
- - Wireless mic receiver
- - DSP for automated audio enhancement and processing
- - Mixer for combining different audio signals
What is an integrated DSP?
The integrated DSP includes advanced audio processing capabilities ensuring consistent audio output without the need for manual adjustments.
The Plus system's Hub features two audio processing paths:
- - Far-end/USB Audio path: Available on USB output. Maintains clear, dynamic audio for remote participants, minimizing noise and peaks to prevent videoconferencing fatigue.
- - In-room audio path: Available on mixed 3-pin Euroblock, RCA, and Dante®️ output. Crucial for unattended spaces requiring voice-lift. It minimizes acoustic feedback risks caused by room imperfections or user error.
Automix outputs:
- - L&R, 3 pin, balanced, Mic level
- - USB-C, digital outputs
- - RCA, unbalanced, Line level
- - Dante®-OUT (configurable for unmixed or mixed output, up to 4 channels depending on Hub configuration)
Note: All outputs can work simultaneously.
Audio processing features
Automixer activates the microphone of the person currently speaking; Quietly lowers the volume of other microphones to reduce background noise, echoes, and feedback; Maintains a consistent overall sound level when multiple people are speaking simultaneously, preventing feedback.
Echo Canceller gently lowers the volume of microphones when the far end is speaking and reduces incoming audio when someone at the near end (in the room) is talking. This prevents echoes and ensures clear two-way communication.
Howling Limiter protects against feedback by spotting and controlling the screeching noise that occurs when sound from a speaker re-enters the microphone.
In-room feedback suppression further reduces feedback during voice-lift by slightly and continuously changing the pitch of the amplified sound and helping to prevent feedback.
Integrated mixer
Enables to mix different audio signals using the Plus system's Hub.
1.Mix in external audio inputs:
- - USB-IN: Far-end audio in video conferences
- - AUX-IN: Other audio sources with analog output
- - Dante-IN: Digital audio from network sources
2.Create different mixed outputs in the Hub settings.
Note: Any audio processing done by the Hub only applies to Plus system microphones and won't be applied to inputted 3rd party audio signals.
` } })" class="product-grid__info-icon"> -
License-free DECT (1.8-1.9 GHz band)
-
100m / 330 ft wireless range
-
Dante®️, PoE, Remote monitoring

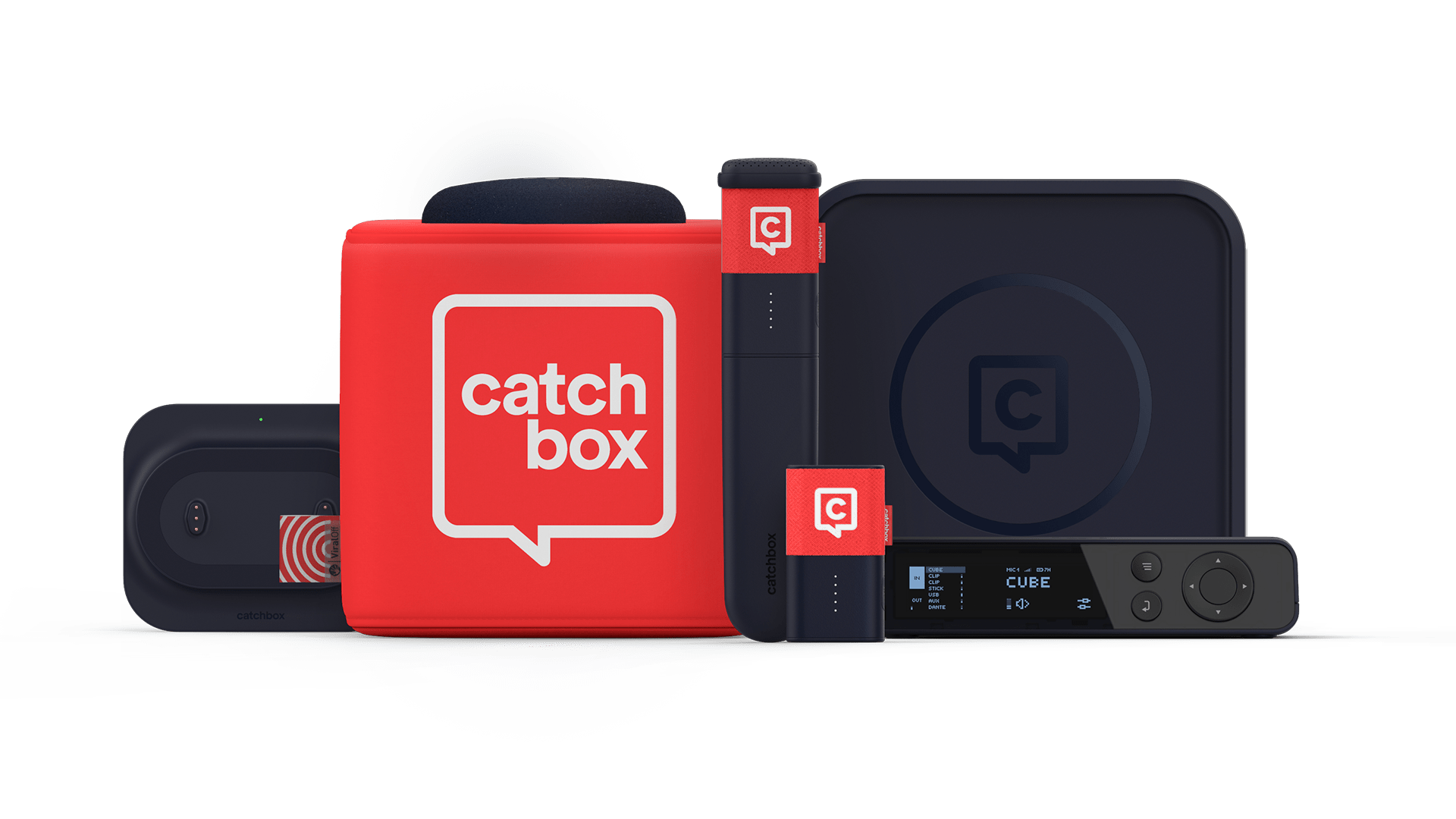

Complete wireless microphone system for crisp whole-room audio capture in classrooms, meeting rooms and conferences
mod
-
Manually replaceable batteries (AA)
-

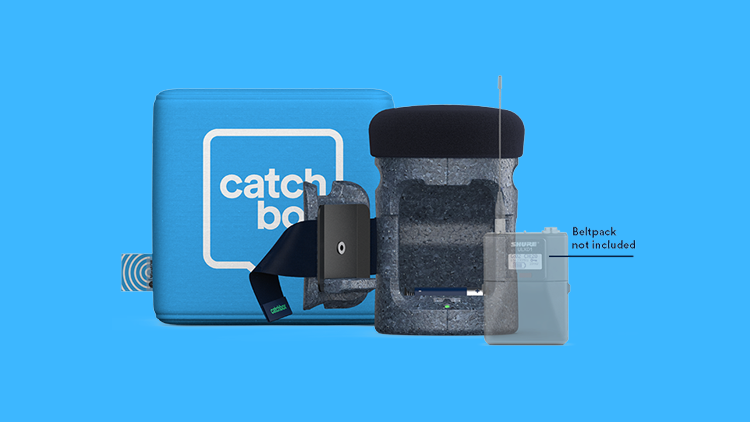

Requires a bodypack transmitter Catchbox Mod is an add-on to existing wireless microphone systems and doesn't include a built-in transmitter. It requires a 3rd party wireless bodypack system (not included with Mod) in order to work. The 3rd party bodypack transmitter must be placed and connected to the Mod capsule's cavity.
What is a bodypack transmitter?
Bodypack transmitter is an electronic device that you have often seen attached to the clothes of a person using a radio microphone (often to the belt).
` } })" class="product-grid__info-icon">
Add-on for converting an existing wireless bodypack system into a throwable microphone for large venue events
