plus
Wireless microphone system
-
Choose 2 or 4 mic channels
-
Integrated DSP and mixer Integrated DSP and mixer
The Plus system's Hub packs three devices in one:
- - Wireless mic receiver
- - DSP for automated audio enhancement and processing
- - Mixer for combining different audio signals
What is an integrated DSP?
The integrated DSP includes advanced audio processing capabilities ensuring consistent audio output without the need for manual adjustments.
The Plus system's Hub features two audio processing paths:
- - Far-end/USB Audio path: Available on USB output. Maintains clear, dynamic audio for remote participants, minimizing noise and peaks to prevent videoconferencing fatigue.
- - In-room audio path: Available on mixed 3-pin Euroblock, RCA, and Dante®️ output. Crucial for unattended spaces requiring voice-lift. It minimizes acoustic feedback risks caused by room imperfections or user error.
Automix outputs:
- - L&R, 3 pin, balanced, Mic level
- - USB-C, digital outputs
- - RCA, unbalanced, Line level
- - Dante®-OUT (configurable for unmixed or mixed output, up to 4 channels depending on Hub configuration)
Note: All outputs can work simultaneously. Any audio processing done by the Hub applies only to Plus system microphones (Cube, Clip and Stick).
Audio processing features
Automixer activates the microphone of the person currently speaking; Quietly lowers the volume of other microphones to reduce background noise, echoes, and feedback; Maintains a consistent overall sound level when multiple people are speaking simultaneously, preventing feedback.
Echo Canceller gently lowers the volume of microphones when the far end is speaking and reduces incoming audio when someone at the near end (in the room) is talking. This prevents echoes and ensures clear two-way communication.
Howling Limiter protects against feedback by spotting and controlling the screeching noise that occurs when sound from a speaker re-enters the microphone.
In-room feedback suppression further reduces feedback during voice-lift by slightly and continuously changing the pitch of the amplified sound and helping to prevent feedback.
Integrated mixer
Enables to mix different audio signals using the Plus system's Hub.
1.Mix in external audio inputs:
- - USB-IN: Far-end audio in video conferences
- - AUX-IN: Other audio sources with analog output
- - Dante-IN: Digital audio from network sources
2.Create different mixed outputs in the Hub settings.
Note: Any audio processing done by the Hub only applies to Plus system microphones and won't be applied to inputted 3rd party audio signals.
` } })" class="product-grid__info-icon"> -
License free DECT (1.8-1.9 GHz band)
-
USB connectivity USB connectivity
The Hub features USB-C IN and OUT connectivity. This connection allows you to send audio from the Hub to your video conferencing call and also bring audio from the call back into the room’s speakers if in-room voice-lift is needed.
If you want to use both sending and receiving audio through the Hub, just make sure to turn on “Speakerphone mode” in the Hub’s settings and choose the Hub as the audio input and output on your computer.

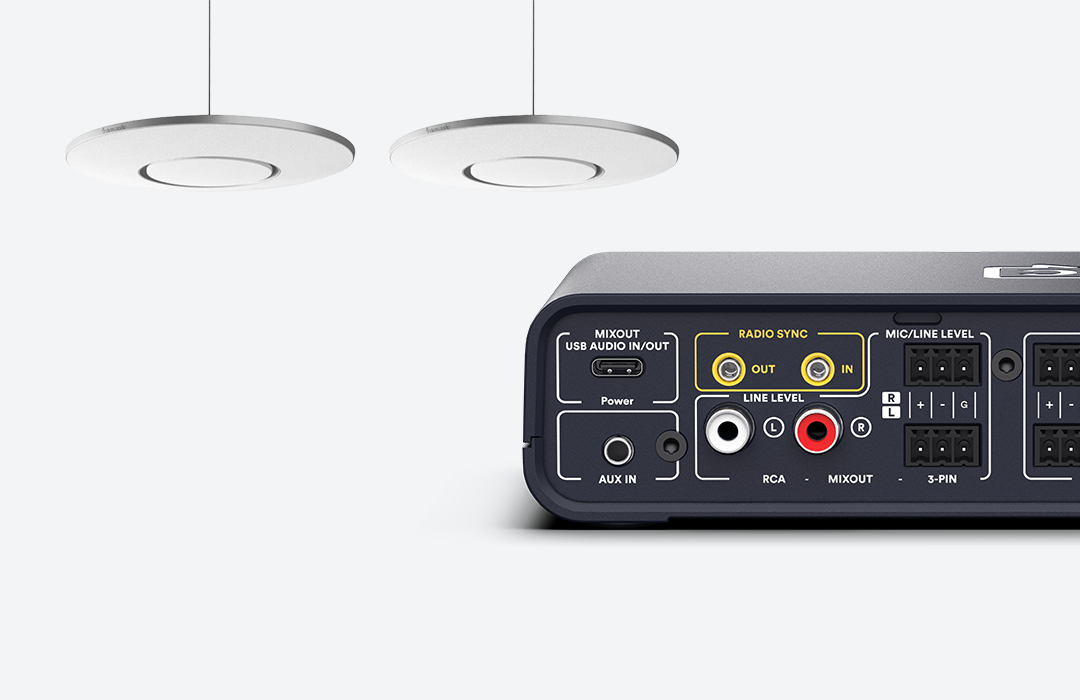

All audio inputs and outputs
The Hub features versatile connectivity options for various technical setup scenarios. Enable full manual control using unprocessed Separate balanced mic outputs or let the Hub do the audio management for you using Automix outputs.
Separate balanced mic outputs:
- - Mic 1 - 3-pin, balanced, Mic level
- - Mic 2 - 3-pin, balanced, Mic level
- - Mic 3 - 3-pin, balanced, Mic level
- - Mic 4 - 3-pin, balanced, Mic level
Automix outputs:
- - L&R, 3 pin, balanced, Mic level
- - USB-C, digital outputs
- - RCA, unbalanced, Line level
Audio inputs:
- - USB-C, digital input
- - Aux-in - 3.5mm - unbalanced, Line level
- - Dante®-OUT (configurable for unmixed or mixed output, up to 4 channels depending on Hub configuration)
Note: All inputs and outputs can work simultaneously.
` } })" class="product-grid__info-icon"> -

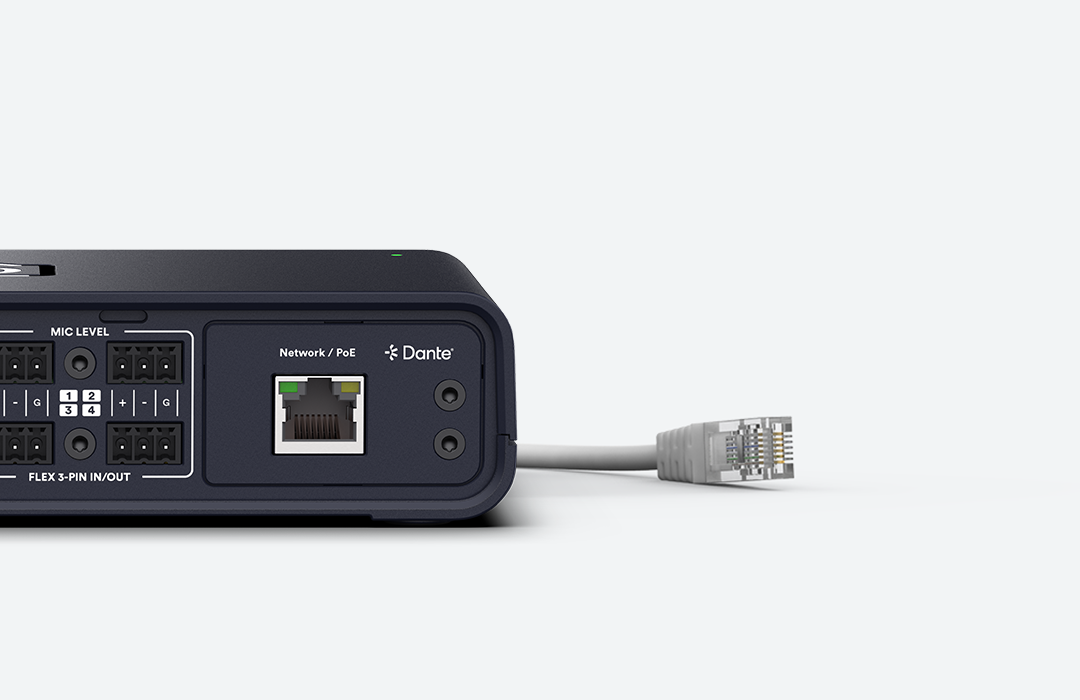

Dante, PoE, Remote monitoring
Free priority shipping, estimated delivery date 25th of October
Pro audio made simple
Designed for unsupervised spaces
Equip your meeting rooms, classrooms and event spaces with microphones that users can start using without any additional setup enabling crisp audio capture on demand.
Built-in DSP and mixer

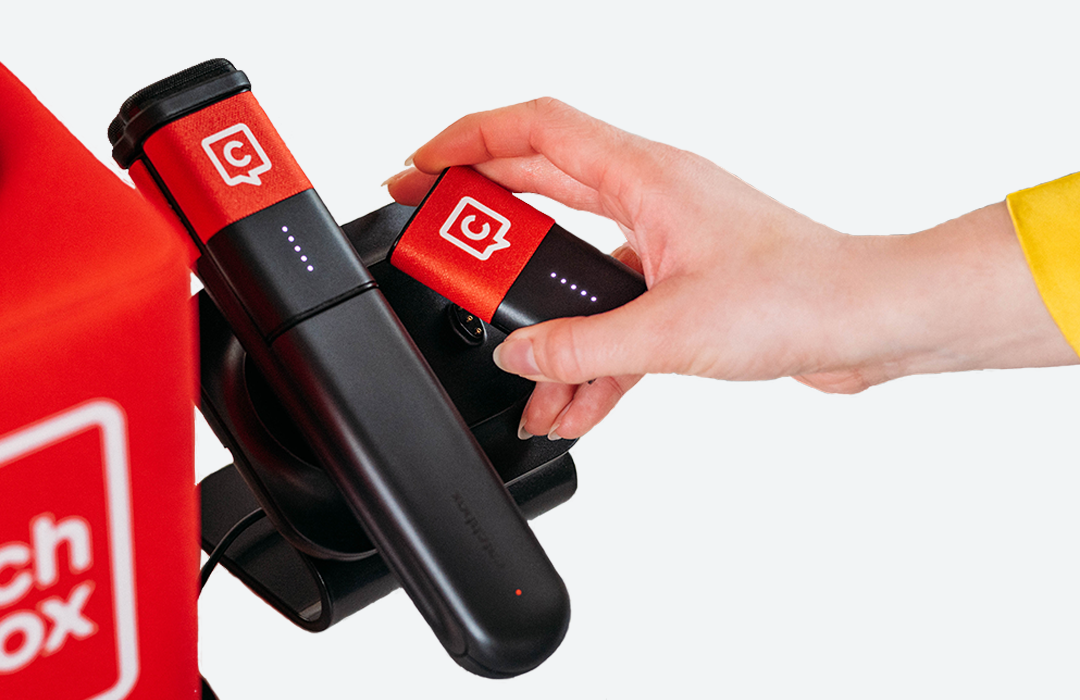

Pick up and talk
Why Catchbox Plus?
Explore benefits
Crisp whole-room audio
One system that does it all. Choose from a selection of presenter and audience mics for crisp, hassle-free audio no matter the size or acoustical challenges of the room.
Save costs and effort
Catchbox Plus combines a wireless mic system and a DSP for a price of a wireless mic system. Save on complex installation, audio management and additional devices and ensure broadcast audio quality.
Less support tickets
The combination of user friendly mic design and features like pick up and talk, range alarm and remote control makes the Plus system ideal for AV/IT teams managing multiple rooms at scale.
The only mic system you'll need

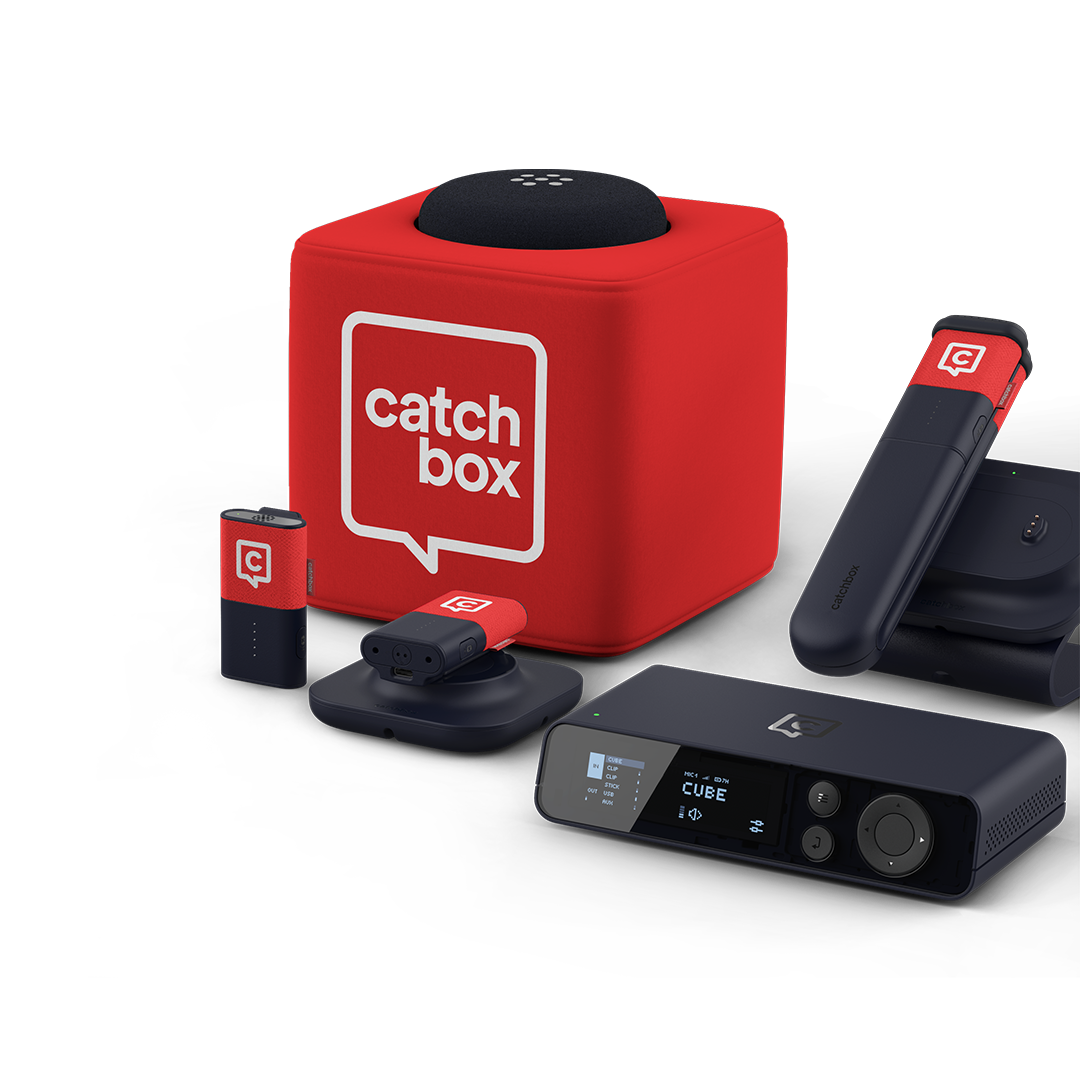

Mix and match mics to include
Pick and choose up to four audience and presenter microphones to connect to your Hub based on your audio capture needs.

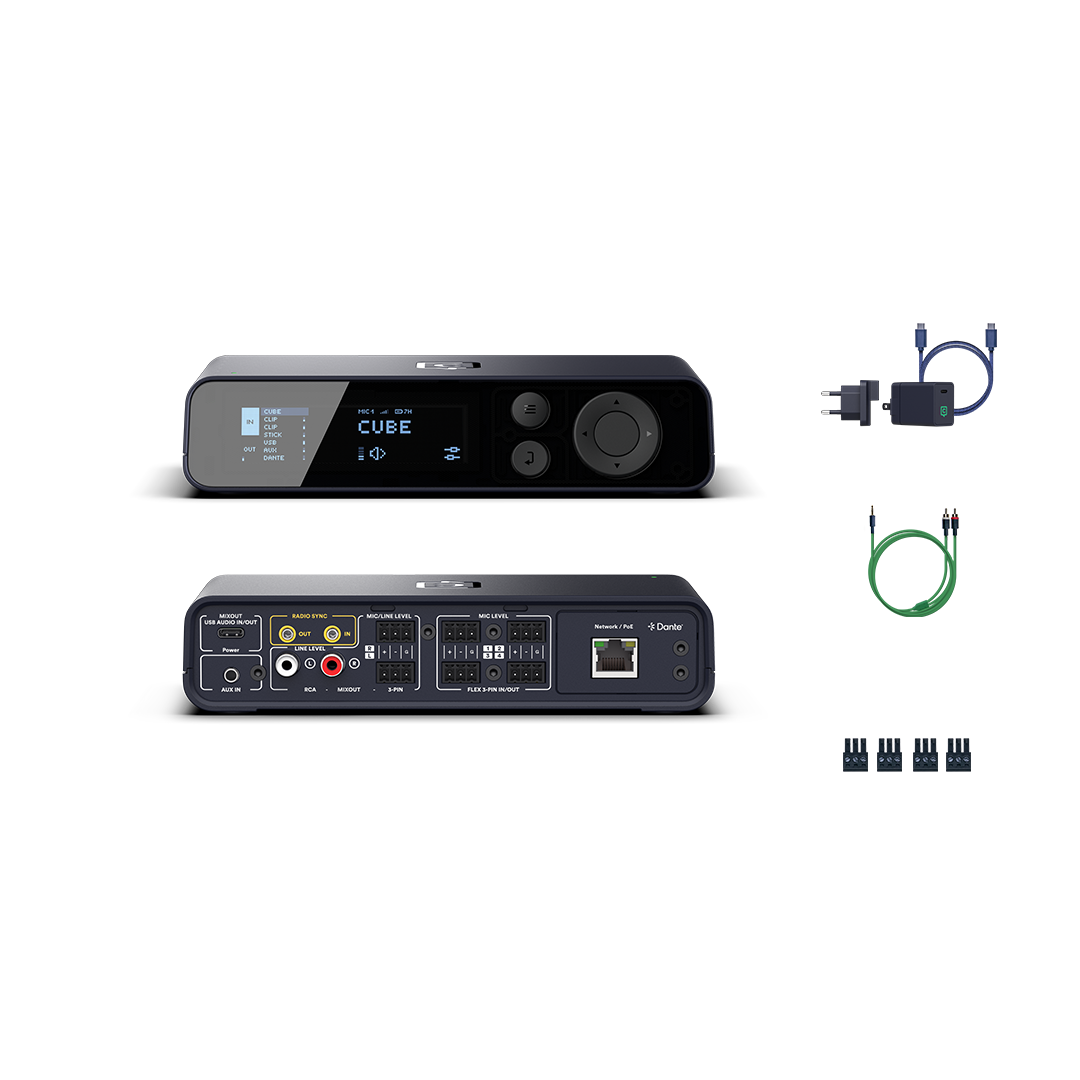

Heart of the Plus system
Connect up to 4 mics
hub
Receiver with DSP
-
2 or 4 mic channel configuration
-
Integrated DSP and mixer
-
Remote control and Dante®️
Mix and match
Explore system mics
Applications
All your audio needs covered
Crisp audio for remote attendees
Listening fatigue is real. Look it up! Noisy audio can quickly lead to tiredness and anxiety making listeners less focused and productive. The combination of integrated audio processing, Focused Omni™ mic pattern and WDR features enables automatic crisp and consistent audio delivery for far end participants.
In-room voice amplification
Catchbox Plus offers in-room voice lift capabilities, utilizing feedback rejection algorithms. These algorithms ensure that audio can be amplified without the annoying feedback typically associated with traditional sound systems.
Clear, noise-free recording audio
Catchbox Plus delivers high-quality recordings that are easy to revisit and understand. Its wireless design allows for flexible microphone placement, while the Hub receiver ensures consistent audio levels in any environment.
Accurate captions
Catchbox Plus provides clear audio with minimized background noise, focusing on capturing the speaker’s voice. This high-quality audio capture significantly improves the accuracy of automated captioning tools. As a result, captions are more precise and reliable, enhancing accessibility for all participants.
Don't take our word for it
Hear the difference
Feeling sceptical? We don't blame you. Experience the Plus system in a 15-minute live demo and learn why thousands of universities and corporations replace their existing solutions with Catchbox Plus.
Technical specification
- Wireless frequency band DECT / DECT 6.0 (1.8 / 1.9 GHz band)
- Wireless range 100 m / 330 ft.
- Wireless signal type Digital
- Microphone pattern Focused omni-directional™️
- Audio frequency response 50 - 20 000 Hz
- Audio latency 19 ms
- Transmitters per system Up to 4
- Battery type Serviceable, Li-ion, rechargeable
- Remote control and monitoring API • Q-sys, Utelogy • Catchbox Control
